Inspur High Performance NF5270M6 3204 16G 2U Rack Server

Inspur High Performance NF5270M6 3204 16G 2U Rack Server
Inspur High Performance NF5270M6 3204 16G 2U Rack Server Inspur High Performance NF5270M6 3204 16G 2U Rack Server Inspur High Performance NF5270M6 3204 16G 2U Rack Server Inspur High Performance NF5270M6 3204 16G 2U Rack Server

Grande immagine :  Inspur High Performance NF5270M6 3204 16G 2U Rack Server

Dettagli:
Marca: Inspur
Numero di modello: Inspur Nf5270m6 Rack Server
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Prezzo: $2000-5000 pcs Negotiable

Inspur High Performance NF5270M6 3204 16G 2U Rack Server

descrizione
Fattore di forma: 2U Rack Server Processore: 1 o 2 processori scalabili Intel® Xeon® Ice Lake
Chipset: Intel C621A Memoria: Fino a 16 DIMM DDR4 da 3.200 MT/s
Magazzinaggio: 12 SSD SATA/SAS/NVMe hot-swap da 3,5" Regolatore di stoccaggio: Controller SATA sulla scheda madre per supportare il livello RAID 0/1/5/10
Evidenziare:

Inspur NF5270M6 rack server

,

2U rack storage server

,

high performance rack server with warranty

Inspur Server NF5270M6 2U Rack Server

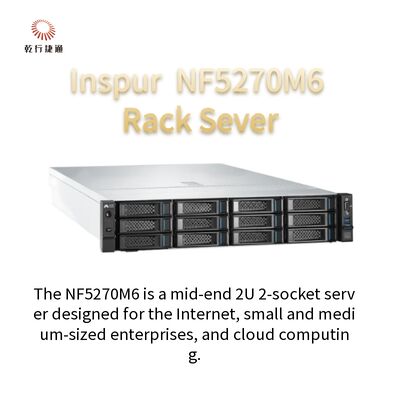

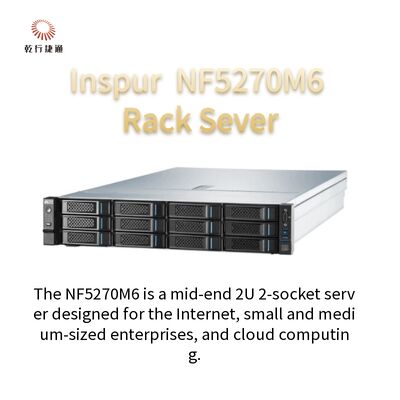

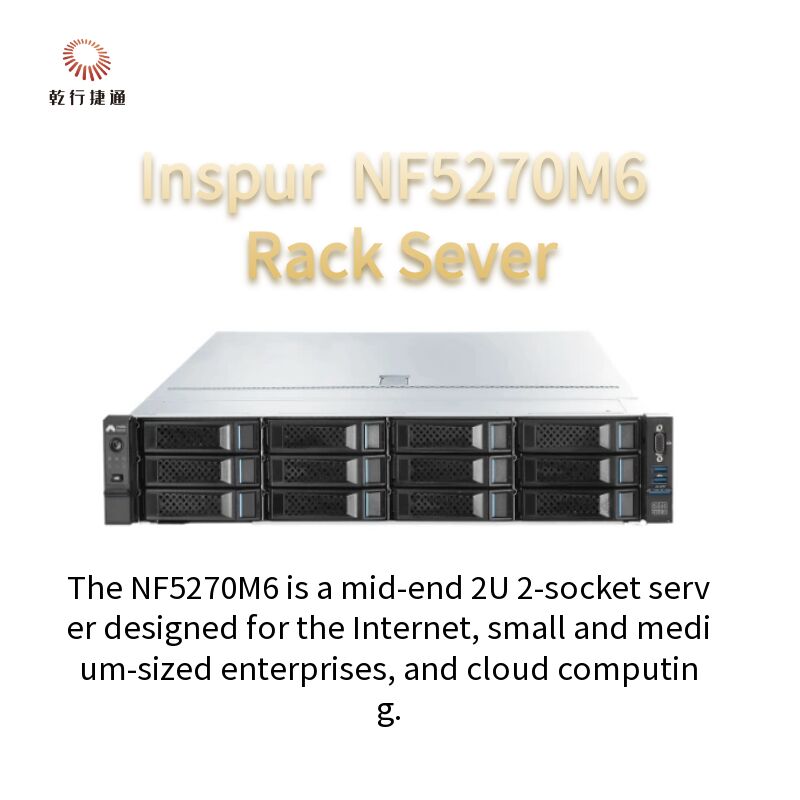

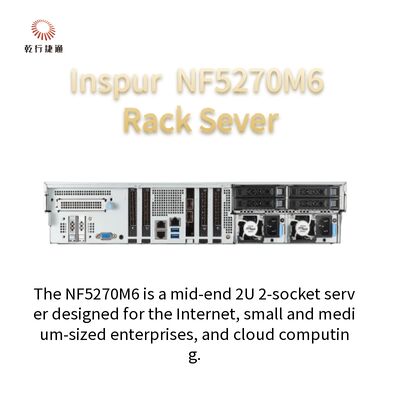

The NF5270M6 is a mid-end 2U 2-socket server designed for the Internet, small and medium-sized enterprises, and cloud computing.




 Technical Specifications


Item Description
Form   Factor 2U rack server
Processor 1   or 2 Intel® Xeon® Ice Lake scalable processors:
Up   to 38 cores per processor (with a frequency of 3.1 GHz)
Max.   frequency 4.3 GHz (4 cores)
3   UPI links (up to 11.2 GT/s per link)
Max.   TDP 270 W
Chipset Intel C621A
Memory Up to 16 3200 MT/s DDR4   DIMMs
8 DIMMs per CPU
16 DIMMs for two CPUs
RDIMMs supported with a   total capacity of up to 4 TB (64 GB per memory module)
Optane® PMem memory   modules (up to 512 GB per memory module)
Storage Front Panel
24 × 2.5" hot-swap SATA/SAS/NVME   (A maximum of 12 NVMe SSDs)
21 × 2.5" hot-swap SATA/SAS + 4 ×   hot-swap SATA/SAS/NVMe SSD;
12 × 2.5" hot-swap SATA/SAS SSD
12 × 3.5" hot-swap SATA/SAS/NVMe   SSD
Rear Panel
4 × 2.5" hot-swap SATA/SAS/NVMe   SSD
Rear Storage
2 optional SATA M.2 SSDs or 2 optional   E1.S modules
Storage Controller SATA controller on the   mainboard to support RAID Level 0/1/5/10.
NVMe controller interface   on the mainboard with optional Intel NVMe RAID key
Network An optional   OCP 3.0 module and dual-port 1G onboard NIC
I/O Expansion Slots Up to 5 standard PCIe   cards and 1 Raid Mezz card
Ports Front: 1 × USB 2.0 port, 1 × USB 3.0   port, 1 × VGA port, and 1 × UID button with LED
Rear: 2 × USB 3.0 port, 1 × VGA port,   1 × 1 G management interface, and 1 × UID button with LED
Fans 4 × hot-swap 8056 fan (N+1 redundancy)
PSUs 2 × 550 W/800 W/1300 W Platinum PSU   (1+1 redundancy)
System Management Onboard BMC module that   supports IPMI, SOL, KVM Over IP, and virtual media and provides a 1 Gb/s RJ45   management interface
Operating   System Windows Server, Red Hat, SUSE, etc.
Dimension 478.8 mm (w) × 87 mm (h) ×   811.7 mm (d)
Weight Less than 38 kg in full configuration.   For more information, please see NF5270M6 White Paper.
Operating Temperature 5°C-45°C

Key Features


Superior Design and Powerful Performance

NF5270M6 is powered by the third-generation Intel® Xeon® scalable processors. A single CPU may have up to 38 cores, 76 threads, and three 11.2GT/s UPI links, with a maximum of TDP of 270W and base frequency of 4.3 GHz, unleashing the ultimate potential of the server to handle any workload.


The server can accommodate 16 DDR4 ECC RDIMMs (3200 MT/s) to offer an aggregate capacity of 4 TB.It also supports eight 512 GB 3200 MT/s Optane® PMem memory modules.


The server adopts an all-flash array accommodating up to 12 hot-swappable NVMe SSDs, which deliver an IOPS ten times higher than that of high-end enterprise-grade SATA SSDs.



Flexible Configuration and Simple Architecture

Up to 25 2.5" SAS/SATA drives (front) and four 2.5" SAS/SATA drives (rear) are supported. The number of NVMe drives is increased to 12.

An optional OCP 3.0 module offers multiple options (1/10/25/100 G).


Up to 5 PCIe 4.0 expansion slots (4 × PCIe x16 + 1 × PCIe x8) are available to improve the I/O performance.



Secure, Reliable, and User-Friendly

The mainboard and backplane come with overcurrent and overvoltage protection. The onboard connectors and cables are designed to be fool-proof to avoid potential circuit safety risks.


A panel latch and top cover latch are added to the chassis to prevent unauthorized operations.All I/O ports are clearly defined without any interface reserved for undefined purposes. An access control mechanism is in place for the ports for maintenance to prevent malicious operations by unauthorized personnel.


All image files are signed with secure encryption algorithms before release, and signature verification is required before the firmware update. All of these ensure the integrity and legitimacy of the firmware.


The ISBMC4 intelligent management system provides security features such as identification and authentication, authorization and access control, Web security configuration, and log audit, with its security reinforcement capability leading the industry.An optional TPM2.0/TCM encryption module is supported to guarantee data security and secure server boot.


Notices:

1. Open the packaging, check the products carefully, and take them gently.

2. The product is a brand new original unopened equipment.

3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.



International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
