FusionServer 1288H V6 Server | Ultimate Computing, High-density Flexible Deployment |

FusionServer 1288H V6 Server8

| Ultimate Computing, High-density Flexible Deployment |

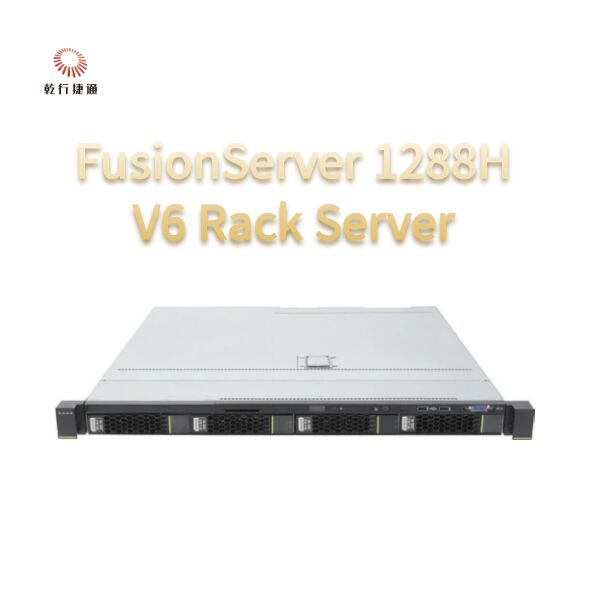

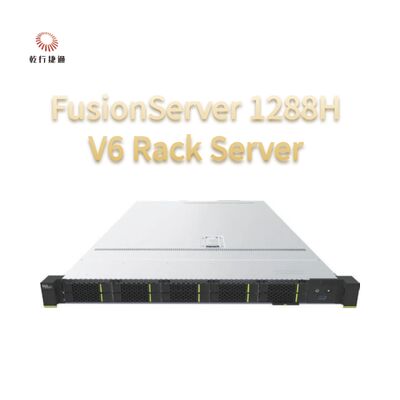

FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for iFusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing. The 1288H V6 is configured with two Intel Xeon Scalable processors and supports up to 32 DDR4 DiMMss, and 4 x 3.5-inch or 12 x 2.5-inch drives for local storage (configurable with 4 or 10 NvMe ssDs), It incorporates patented technologies, such as Dynamic Energy Management
Technology (DEMT) and Fault Diagnosis & Management (FDM),and integrates FusionDirector software for entire-lifecycle management
helping customers drive down operating expense (OPEX) and improve return on investment (ROl).rector software for entire-lifecycle management helping customers drive down operating expense (OPEX) and improve return on investment (ROl).

Superior Performance and Ultra-high Density

• Two Intel® Xeon® Scalable processors can run on a 1U space, with an UltraPath Interconnect (UPI) bus speed of up to 11.2 GT/s between processors. Each processor supports up to 40 computing cores. It supports Intel® Turbo Boost 2.0, hyper-threading, and Advanced Vector Extensions (AVX-512), improving the computing performance of a single processor by up to 46% compared with that of the previous generation.

• Provides 32 DDR4 DIMMss and delivers memory capacity of up to 8 TB (with 256 GB DIMMs). This is ideal for application scenarios that require large-capacity memory.

• Supports the use of 16 Intel® Optane™ Persistent Memory (Optane™ PMem) 200 series as volatile or non-volatile storage with 16 DDR4 DIMMss. The memory capacity is up to 12 TB (with 512 GB Optane™ PMem and 256 GB DDR4 DIMMs) to meet the demands of various workloads.

• Supports OCP 3.0 NICs. The two FlexiO card slots support two OCP 3.0 NICs respectively, which can be configured as required.

• Supports boot speedup storage technology (BSST). The OS is installed on two M.2 SSDs, which is deployed separately from service data. Supports hardware RAID and hot swappable for M.2 SSDs.

Smart Power Saving and Better Energy Efficiency

• Adopts DEMT, driving down overall equipment power consumption by up to 18% without compromising workload performance through multiple power-saving measures such as component hibernation, proportional-integral-derivative (PID) algorithm based fan speed tuning, and active-standby power supplies.

• Uses80PLUsTitaniumpower supplyunits (PSUs)thatprovidea conversionefficiencyof upto96%andhaspassed the EnergyConservationandEnvironmentally-friendlyCertificationreleasedbyChinaQualityCertificationCenter(CQC)

• Supports 900 W,1200W,1500Wand 2000 W PsU options,adaptingflexiblyto different power requirements.The 1200 W and 150o W PSUs use direct current (DC) and high-voltage direct current (HVDC) technologies, improving energy efficiency.

Intelligent Management and Open Integration

• Integrates FusionDirector for intelligent full-lifecycle O&M, improving O&M efficiency by 30%.

» Intelligent maintenance integrates diagnosis and recovery, and accurately manages key components. The fault diagnosis accuracy reaches 93% and the breakdown rate decreases by 50%.

»Intelligent upgrade enables one-click automation, cloud-based collaboration for quick policy formulation, and firmware

» versions automatic completeness and upgrade in batches,improving efficiency by 20X.

» Intelligent discovery enables 100% accuracy of component-level visualization, automatic asset inventorying in seconds, and real-time track tracing.

» Intelligent energy saving enables refined dynamic energy management. It integrates the DEMT 2.0, saving 18% of the system energy.

» Intelligent deployment enables pipelined deployment and one-click switchover on demand, improving deployment efficiency by 10x

.• Provides standardized open interfaces and development guides, facilitating seamless integration with third-party management software.
